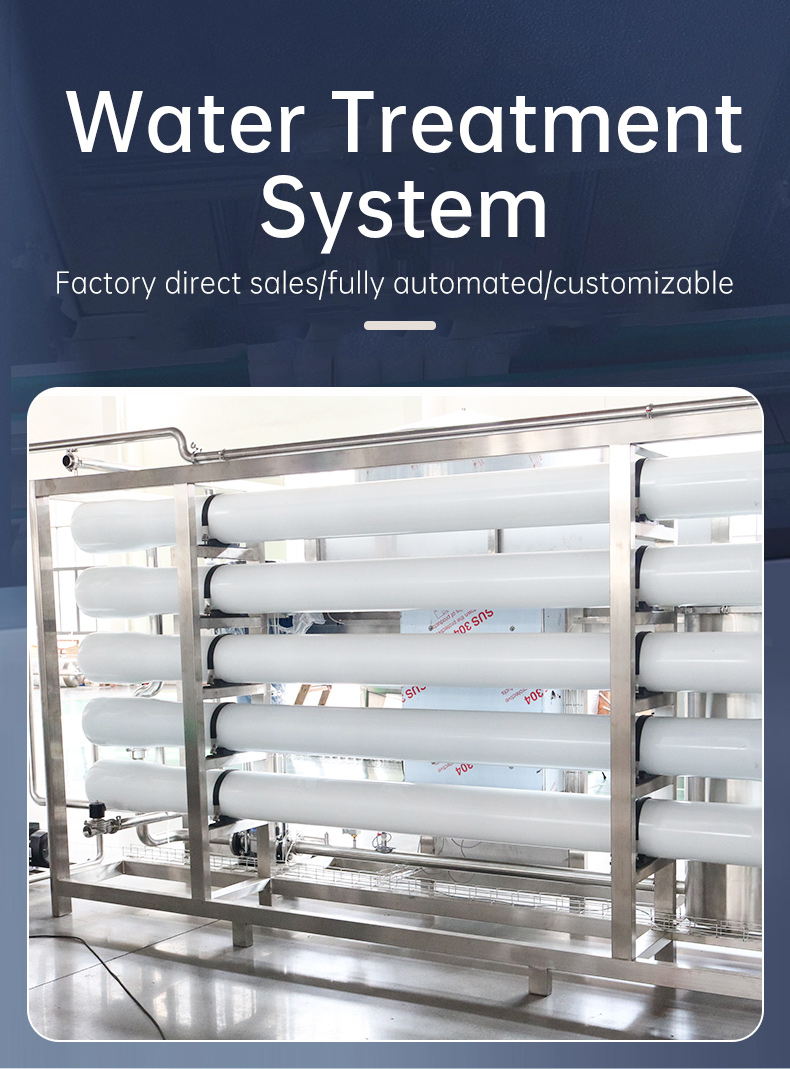

Water Treatment System

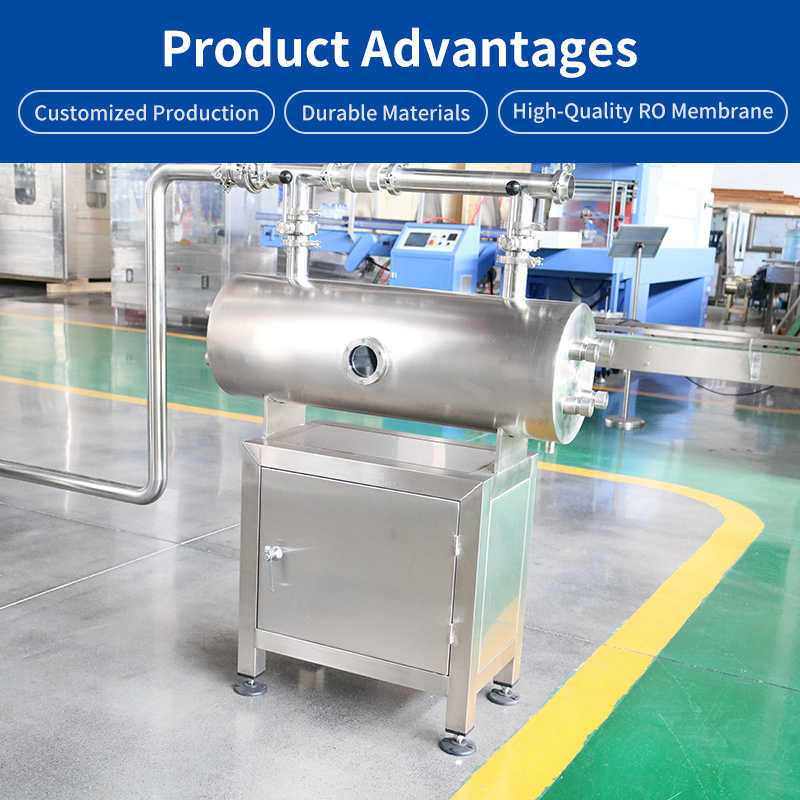

Product advantages

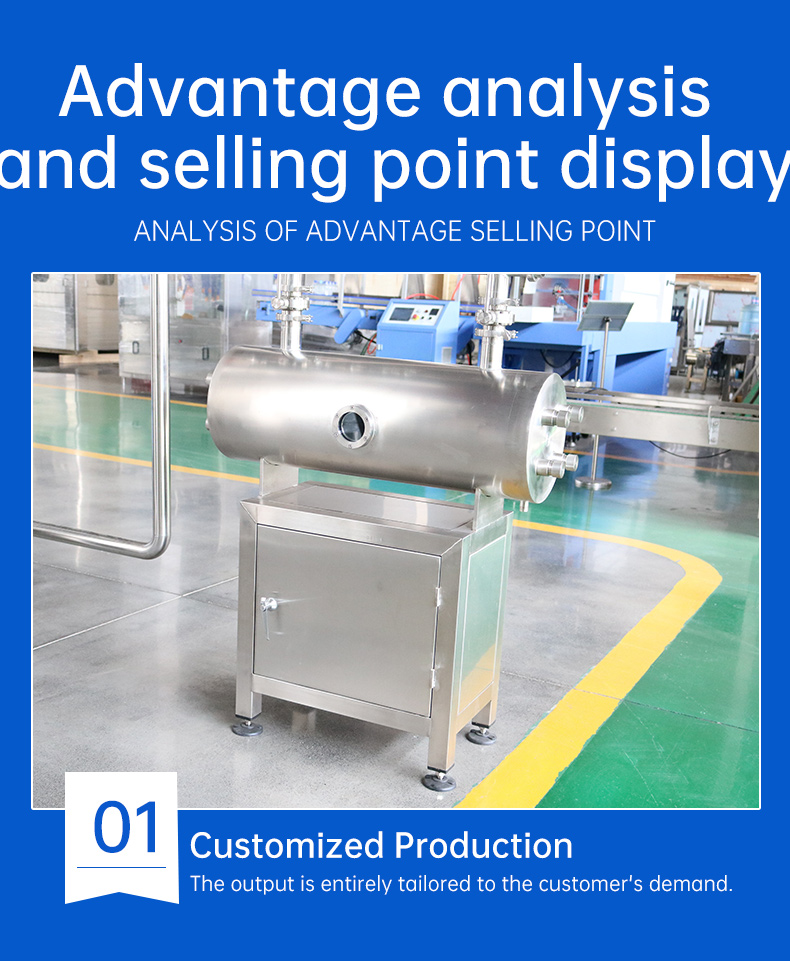

1、Customized Production
The output is entirely tailored to the customer’s demand.

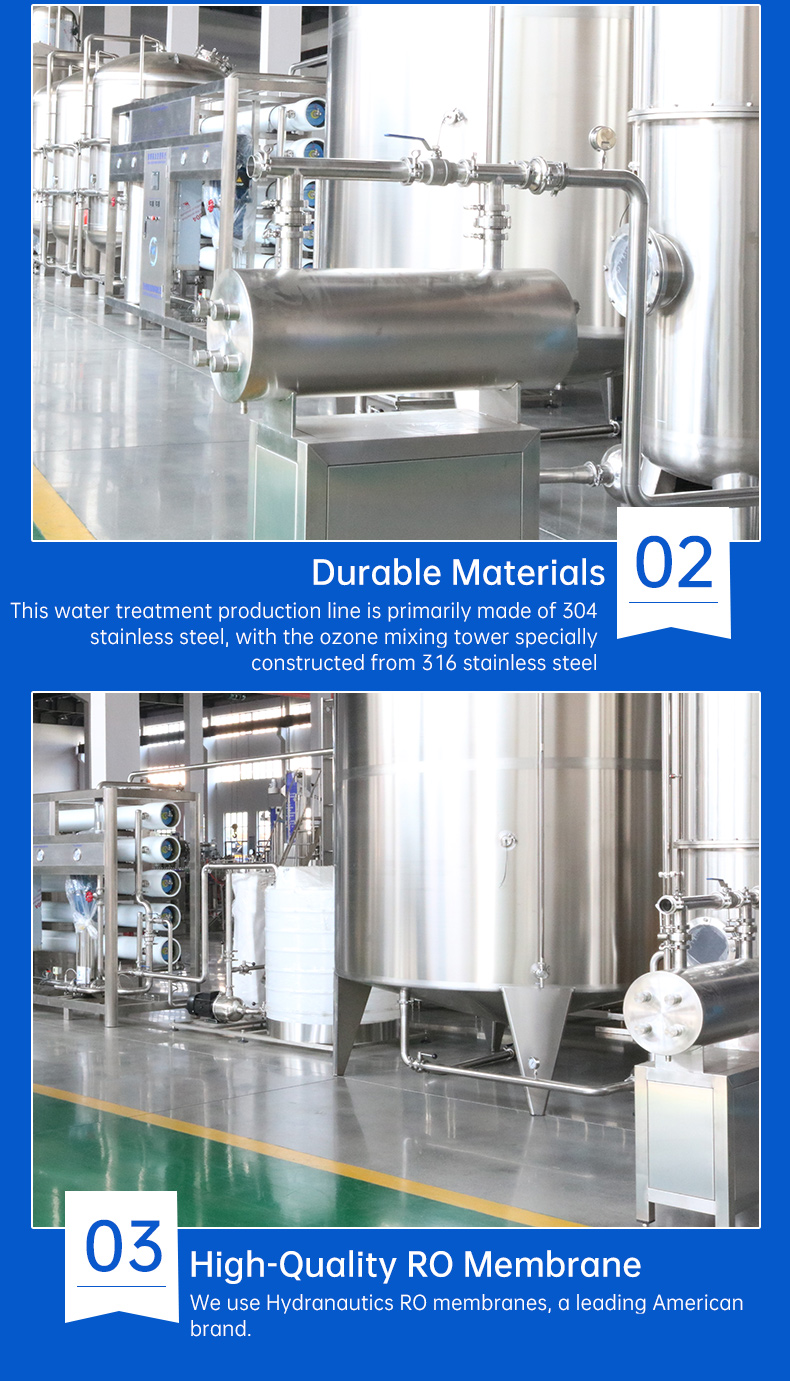

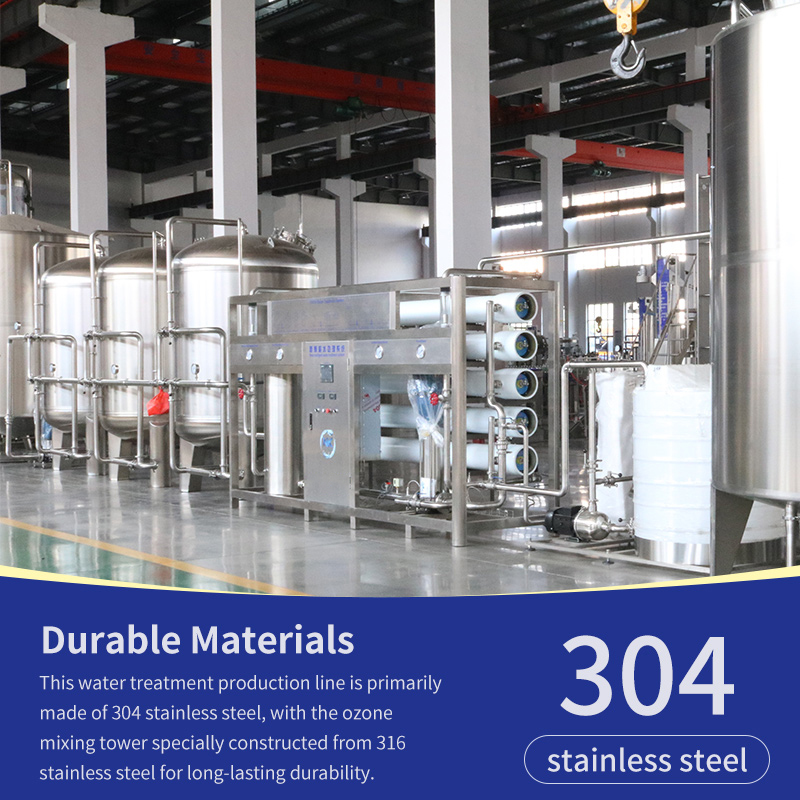

2、Durable Materials
This water treatment production line is primarily made of 304 stainless steel, with the ozone mixing tower specially constructed from 316 stainless steel for long-lasting durability.

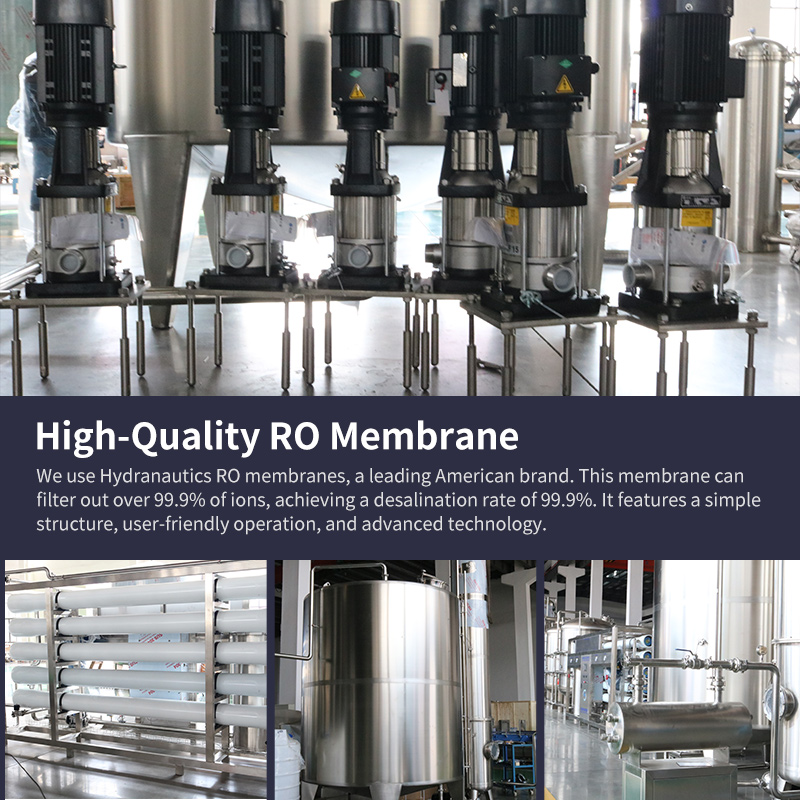

3、High-Quality RO Membrane
We use Hydranautics RO membranes, a leading American brand. This membrane can filter out over 99.9% of ions, achieving a desalination rate of 99.9%. It features a simple structure, user-friendly operation, and advanced technology.
Product Introduction
Step 1: Primary Pretreatment (Quartz Sand Filter)
Utilizing multi-layer quartz sand filtration, this stage effectively removes sediments, silt, manganese, colloids, mechanical impurities, suspended solids, and other harmful particles larger than 20 microns that pose risks to human health.
Step 2: Secondary Pretreatment (Activated Carbon Filter)
The activated carbon filter eliminates color, odors, certain chemicals, and microorganisms from the water, while also reducing dissolved substances, pesticide residues, and other harmful contaminants.
Step 3: Tertiary Pretreatment (Sodium Ion Exchanger)
Sodium ions bind with calcium and magnesium ions to form precipitates, which are then filtered out, effectively softening the water.
Step 4: Final Pretreatment (Precision Filter)
This unit ensures that the water entering the reverse osmosis (RO) membrane has a particle size of less than 0.1 microns, further purifying fine particles and preventing clogging of the RO membrane in the next stage.
The functions of each component

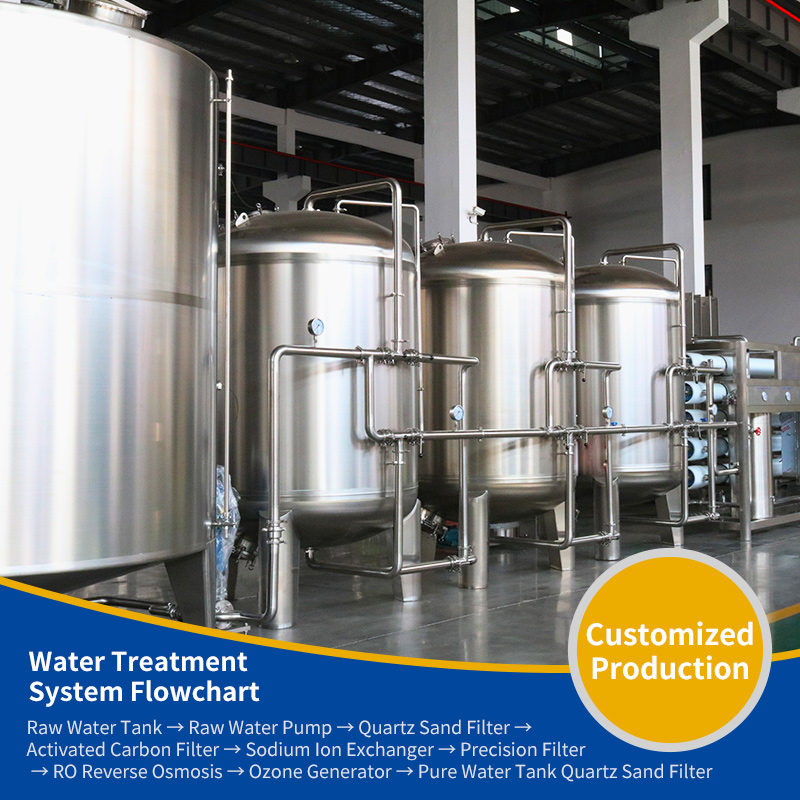

Water Treatment System Flowchart

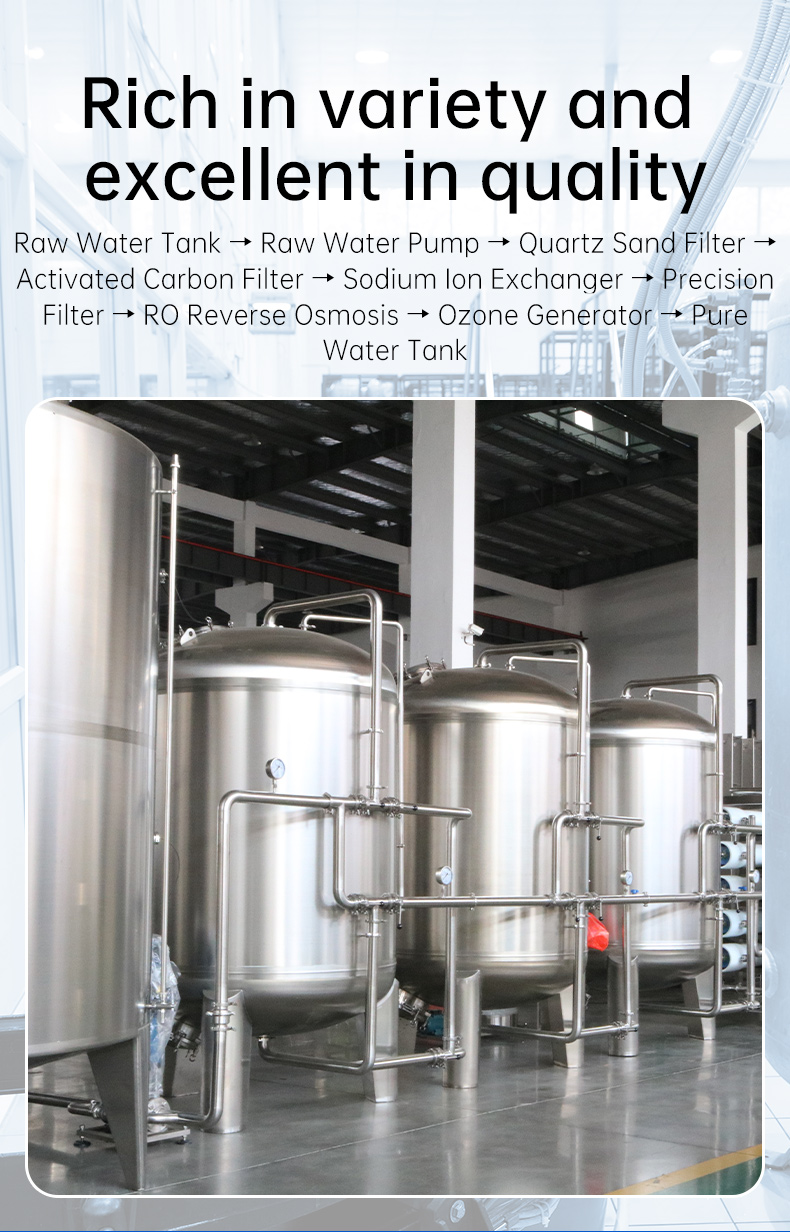

Raw Water Tank → Raw Water Pump → Quartz Sand Filter → Activated Carbon Filter → Sodium Ion Exchanger → Precision Filter → RO Reverse Osmosis → Ozone Generator → Pure Water Tank
Quartz Sand Filter
The quartz sand filter removes suspended particles and colloidal substances, effectively reducing water turbidity.

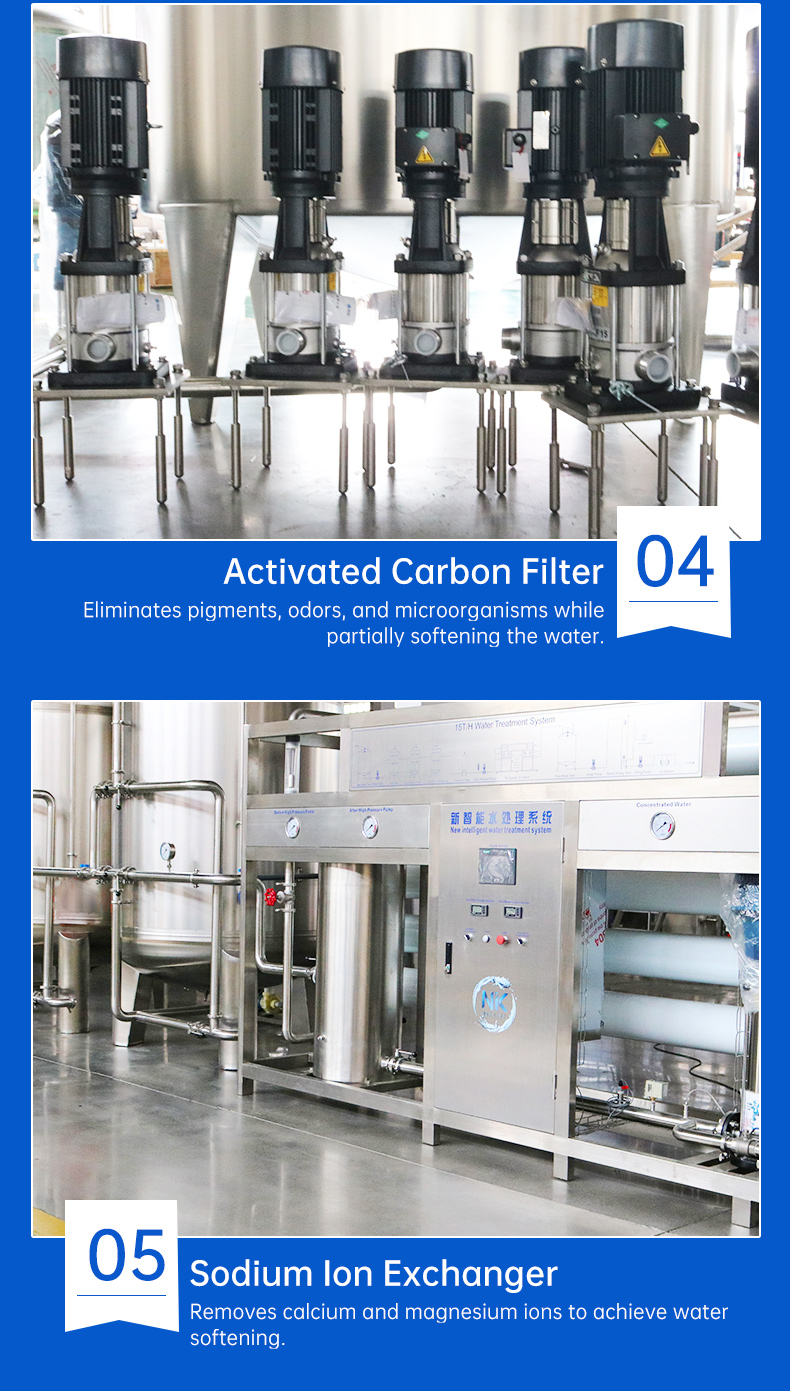

Activated Carbon Filter
Eliminates pigments, odors, and microorganisms while partially softening the water.
Sodium Ion Exchanger
Removes calcium and magnesium ions to achieve water softening.
Precision Filter
Ensures that water entering the RO membrane has a particle size of less than 0.1 microns.

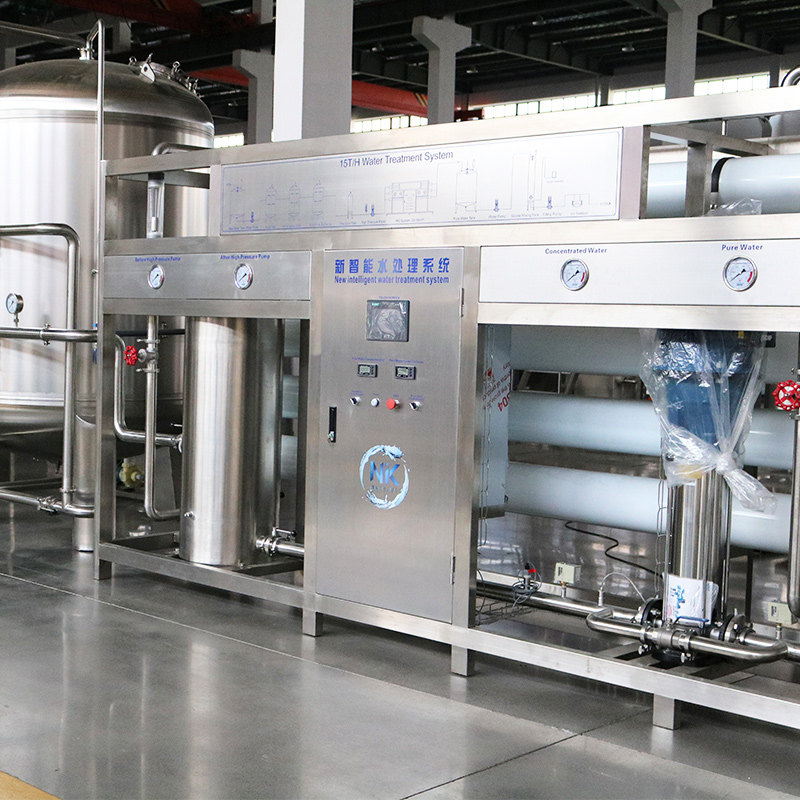

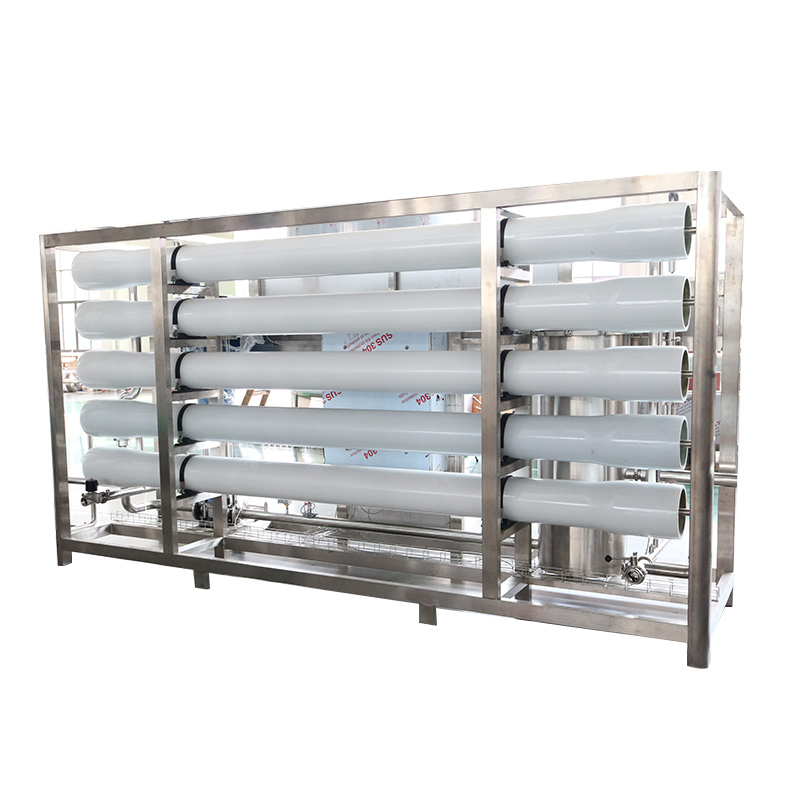

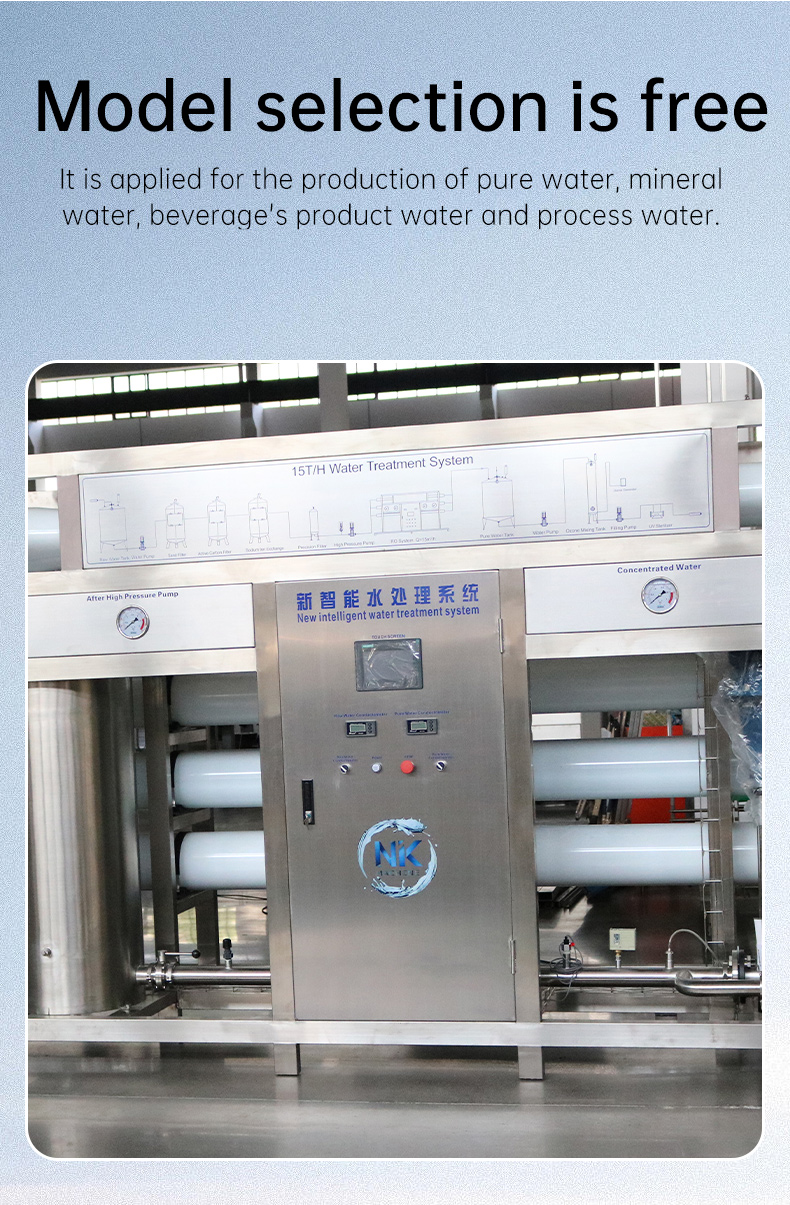

Reverse Osmosis (RO) System
The RO unit purifies water by utilizing the pressure difference across a semi-permeable membrane. Operating at a pressure higher than the osmotic pressure, it allows only water molecules to pass while blocking dissolved salts (removing 97%), colloids (99%+), microorganisms, and organic matter. This system offers high water quality, low energy consumption, zero pollution, simple process, and easy operation, making it the ideal choice for producing purified, high-purity, and ultra-pure water.
UV Sterilizer
Uses ultraviolet light to kill bacteria and viruses that may bypass the precision filter.
Ozone Disinfector
Employs ozone sterilization to eliminate any bacteria that might survive UV treatment.
RO System Components
Pump core components: Imported high-performance parts
RO membrane: Hydranautics (USA)
Full-set cleaning unit: Ensures long-term efficiency
Features: Simple structure, user-friendly operation, and advanced technology
This system ensures high-purity, safe, and reliable water treatment for various industrial and commercial applications.
Products scope
RO series
Ultra-filtration series
Membrane and filter core
Application fields of water treatment
Water for food and beverage production
Water for boiler, treatment of the industrial waste water
Water for medical use, high purity water for electronics industry
Capacity: 1,000L/hr – 100,000L/hr
